ID Lighting & Environmental Systems Project 1: Astrology Light Fixture

ID Lighting & Environmental Systems Project 1: Astrology Light Fixture by Sydney Bourque.

Author: Sydney Bourque

Class: IDES 350 Interior Design Lighting & Environmental Systems

The Design Problem

Design a decorative vanity light fixture for the restrooms of a high-end sushi restaurant.

Concept & Design Development

Based on the study of the movements and relative positions of celestial bodies, interpreted as having an influence on human affairs and the natural world. The Astrology is an RGB LED lighting system that is available in two sizes and three colors. With a minimal aesthetic it is the perfect modern light fixture to serve as a focal point within a space. The Astrology is light weight, energy efficient and dimmable. White and Black lamps will be made of aluminum, while wood lamps will be 100% recycled bamboo. No matter which selection is chosen it will be guaranteed a sustainable choice.

Electrical Specifications

The LED light strip will be wired through the wall-mounted cylinders to the junction box. A dimming switch will be installed before the transformer. From the junction box the wires will extend to the main power source. Thermal effects, driver losses and optical inefficiencies all combine to reduce the efficacy of this LED luminaire. Considered collectively, these loss mechanisms can result in a decrease if efficacy of greater than 30%.

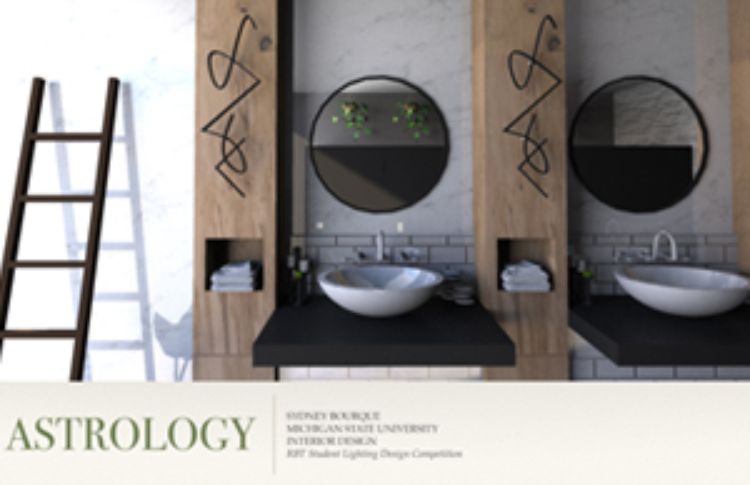

This board (1 of 4) by Sydney Bourque shows the cover board for the ID Lighting & Environmental Systems Project 1 with a perspective view of the Astrology light fixture in dimmed-illumination mounted on the wall next to two sink and mirror sets within a Japanese restaurant restroom.





This board (2 of 4) by Sydney Bourque features the Astrology light fixture concept and design development, including images of inspiration and choice of three color options, a concept statement, fixture dimensions, and a rendered perspective and section cut and dimensions of wall-mounted installations within a Japanese restaurant restroom.





This board (3 of 4) by Sydney Bourque features alternative views and lighting for the Astrology light fixture, including a description of electrical specifications, a diagram of electrical operation, a diagram of candlepower distribution, and a perspective views of a ceiling-mounted installation for an office space.



This board (4 of 4) by Sydney Bourque features the Astrology light fixture in off and in-use perspectives, including views of the light fixture in full illumination, dimmed-illumination, and wall and ceiling-mounted installations in office and restroom spaces.





This rendering by Sydney Bourque shows a perspective view of the Astrology light fixture in dimmed-illumination mounted on the wall next to two sink and mirror sets within a Japanese restaurant restroom.
