Research findings highlight new opportunities for saturated buffer placement
Print
EmailField evidence suggests saturated buffers can be effective across a wider range of slopes and channel conditions than previously assumed.
Important takeaways
- Results suggest that saturated buffers can be effective in fields with slopes as low as 1%
- Field data indicate that streambank stability concerns may be site‑dependent rather than depth‑dependent alone
- Findings support refining saturated buffer siting guidelines to better reflect field conditions
Saturated buffers are an edge‑of‑field conservation drainage practice designed to reduce nitrate loss from tile‑drained fields by diverting drainage water through a vegetated buffer before it enters surface waters. While saturated buffers are known to improve water quality, their adoption has often been limited by conservative siting guidelines related to field slope and drainage ditch characteristics.
Recent field research conducted by Michigan State University provides new insight into how saturated buffers function under conditions that extend beyond commonly used design guidelines.
Performance on fields with moderate slopes
Planning tools such as the Agricultural Conservation Planning Framework (ACPF) commonly prioritize saturated buffers on fields with slopes greater than 2%. However, field measurements from this study showed that saturated buffers functioned effectively on a field with a slope of 1.1%, achieving 66% nitrate load reduction. These results suggest that moderately sloped fields can still offer substantial water‑quality benefits.
Streambank stability linked to water‑level behavior
The Natural Resources Conservation Service (NRCS) practice standard code 604 requires additional investigation if the drainage channel is deeper than 8 feet due to concerns about streambank instability. Streambank instability is typically associated with the formation of a seepage face, which occurs when the streambank water table exceeds the water level in the ditch.

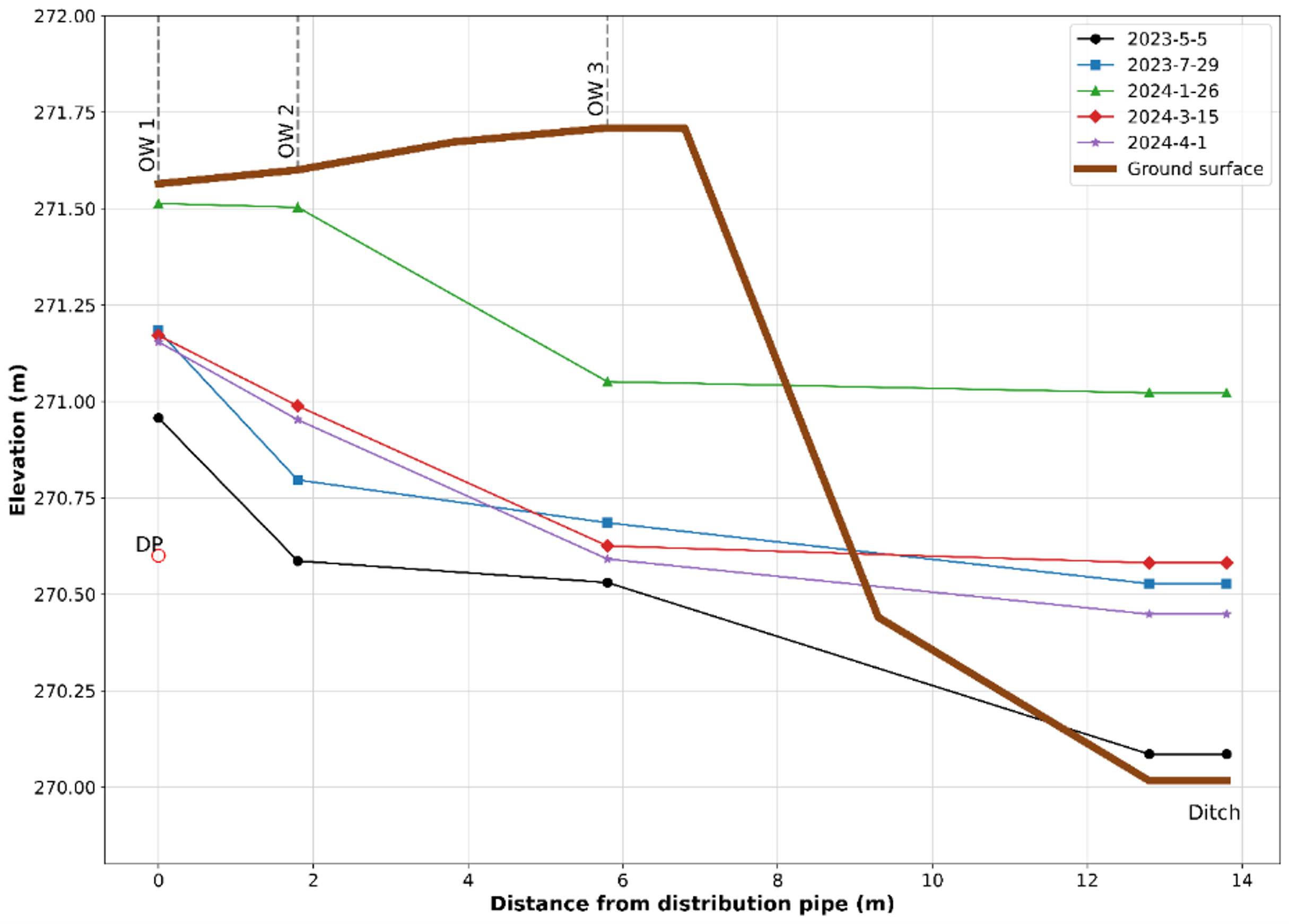

Field data showed that ditch water levels closely followed buffer water‑table elevations across a wide range of conditions, including high‑flow events (Figure 1). When ditch and bank water levels rise and fall together, seepage face formation is unlikely, reducing the risk of streambank instability. These observations indicate that channel depth alone may not fully determine bank stability risk. Previous research by Dickey et al. in 2021 has similarly shown that saturated buffers rarely destabilize previously stable banks and that bank height alone is not a sufficient indicator of failure risk.
Implications for conservation planning
Together, these findings suggest that existing saturated buffer design and siting criteria may be more flexible than previously understood. Additional research is needed to identify conditions that are more prone to streambank slumping. Continued field‑based evaluation will help refine guidelines and support more effective placement of saturated buffers to improve water quality.
For more information about saturated buffers and our research findings, see Michigan State University Extension bulletin E3535: Unveiling the True Potential of Saturated Buffers.
This research was partly funded by the Classic Conservation Innovation Grant (USDA-NRCS-NHQ-CIG-20-GEN0010808) from the US Department of Agriculture's Natural Resource Conservation Service and by the Michigan Department of Agricultural and Rural Development (791N7700580).
